Steel Palisade Fencing

Steel Palisade Fencing, also known as European Style Fencing. In some countries people may not familiar with this type of fencing system, but many countries have already been using it to replace the traditional brick walls and heavy wire mesh fence, making the living environment beautiful, comfortable and fresh. “Palisade” is also called “Security Defense assembled pales”, it comes into people’s life because the pursuit of a better environment.

The most common specifications for Steel Palisade Fencing is 1.8M high and 2.5M wide. Preservative treatment of this type of fencing includes: electrostatic galvanized, hot dip galvanized, polyester powder coated, PVC coated, etc. Powder coated and PVC coated Steel Palisade Fencing due to its low price and durability are very popular among customers. Durable, strong corrosion-resistant, long service life are some of the characteristics of this type of fencing system.

Steel Palisade Fencing system can be custom made upon request. This fencing system is beautiful and practical, there are no mesh and frame structures, it makes the transportation and installation very easy. And the system is adaptable to different project scenarios. Steel Palisade Fencing is widely used at railway living areas. Some features of steel palisade fencing system lies in that they are attractive and durable, of broad vision, having various colors, of high strength and good rigidity.

Steel Palisade Fencing Specifications

A HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm / 2400mm


B WIDTH: 2750mm / 3050mm


C PALE TYPE: W-profile / D-profile / Angle Steel


D PALE TOP: Single Pointed / Triple Pointed / Round Top / Square Top


E PALE THICKNESS: 1.5mm / 2.0mm / 2.5mm / 3.0mm


F HORIZONTAL RAIL: Angle Steel 40mm*40mm*4.0mm / 45mm*45mm*4.5mm / 50mm*50mm*5.0mm


G POST: 100mm*55mm / 102mm*44mm(IPE Post)


H CLAMP: Fish Plate


S SURFACE: Hot Dipped Galvanized (505g/m²)

Electric Galvanized + Polyester Powder Coated (All colors in Ral)

welded mesh fencing right arrow

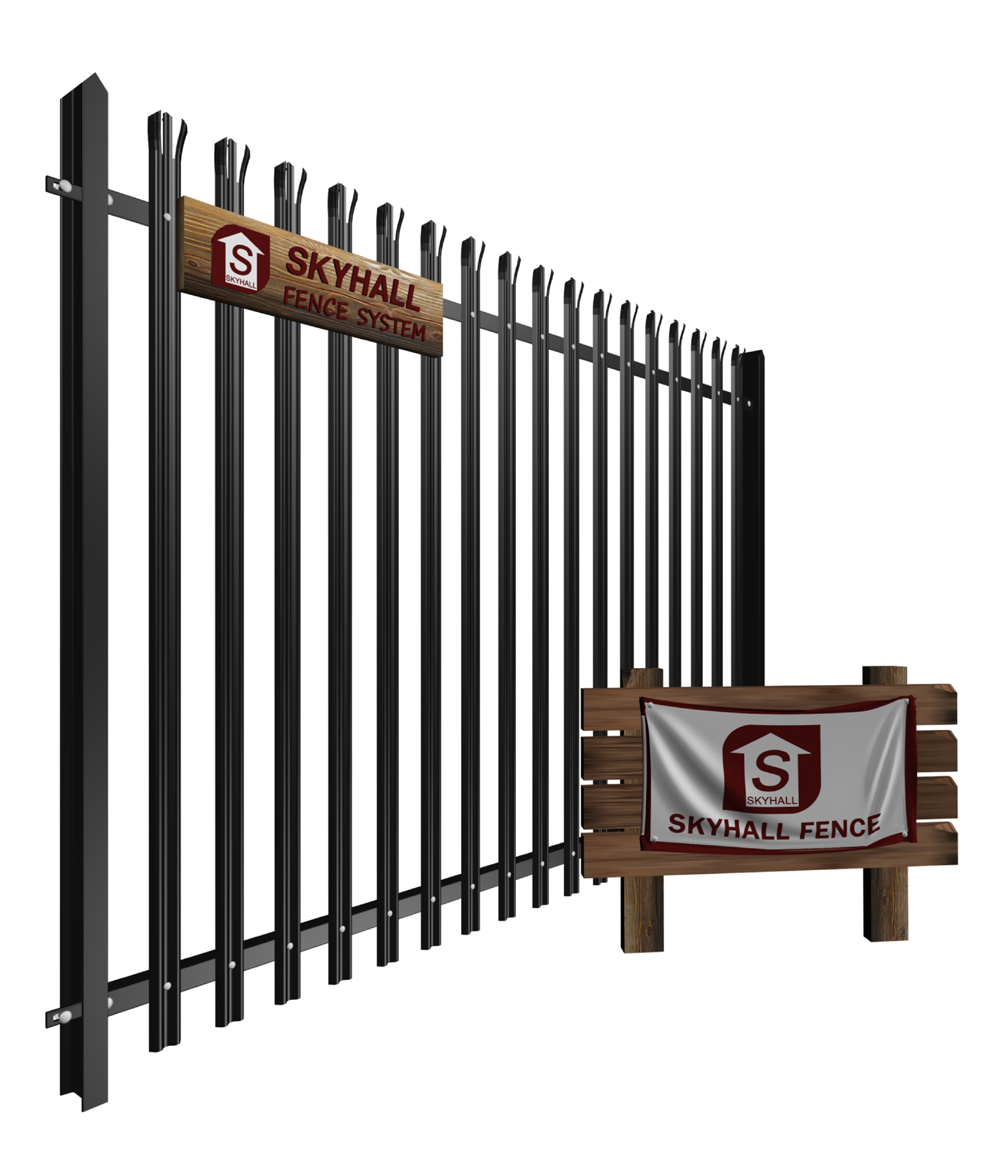

steel palisade fencing 3d illustration


  1. Height: the height of the steel palisade fence.
  2. Width: the distance between two IPE posts, measure from center to center.
  3. Pale Type: shape of the steel palisade fence pale, normally W pale or D pale.
  4. Pale Top: shape of the steel palisade fence pale top, normally triple pointed or single pointed.
  5. Pale Thickness: wall thickness of the steel palisade fence pale.
  6. Horizontal Rail: usually use angle steel to be the rail of steel palisade fence, its function is connecting the pales and post.
  7. IPE Post: also called RSJ post.
  8. Fish Plate: small tools for connecting IPE post and horizontal rail, it use as a clamp.
  9. Hot Dipped Galvanized: dip the fence in to a container that is full of liquid zinc, to prevent the steel palisade fence from getting rusty.
  10. Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the steel palisade fence from getting rusty.

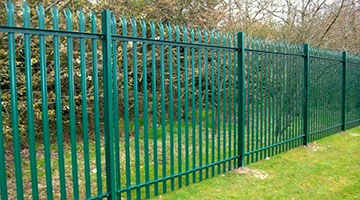

steel palisade fencing strong


Steel palisade fencing is composed by the strong IPE post and steel pales. So it is very strong and very hard to break. The wall thickness of the pale is usually 2.0mm, so to resist the wind power or the slight strike is very easy for the concrete palisade fencing. If you want to find a strong fence panel, palisade fence must be a great choice in the metal fencing.

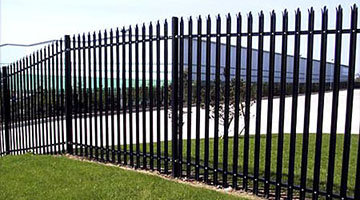

steel palisade fencing decorative


The appearance of the steel palisade fencing looks very modern and beautiful. Many customers will choose it as their boundary wall for their gardens. It will has a pretty high security and decorates the garden at the same time.

steel palisade fencing decorative

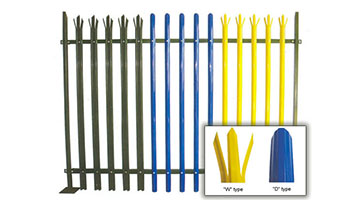

“W”/“D” Pale

Compared with other wire mesh fences, the steel palisade fencing panels is made by the pales. There are “W” pale and “D” pale. You can choose the one you like. The “W” pale width is usually 70mm, while “D” pale width is usually 60mm. You can pick according to your preference.

Randomly Selected Projects

2014 – 2.1km – UK

Exported 2.1km steel palisade fencing to UK for 4 parking area.

2014 – 7.2km – Ireland

Exported 7.2km steel palisade fence to Ireland.

2010 – 14.3km – Turkey

Exported 14.3km hot dipped galvanized steel palisade fencing to Istanbul, Turkey for an oil tank project.

2014 – 4.3km – New Zealand
Exported 4.3km to New Zealand for fencing a industry zone.

2012 – 810,000pcs of Pale – Brazil
Exported 810,000 pcs of W profile steel palisade fence pale to Brazil.

I have a property that needs to be protected by a fencing system. When I came to Skyhall Fence, their representative gave me some very good advise and recommendation. We contacted through Email for so many times and they gave me great patience and guidance. Finally I took their advise and bought a palisade fencing system which turned out to be very perfect for my project. Thank you guys!

– Adam

I purchased a 20’FCL of steel palisade fence from Skyhall Fence to New Zealand in March 2014. Really appreciate their quality and packing. It’s almost one year the steel palisade fence still looks like brand new. I will place another steel palisade fencing order to Skyhall in next March.

– Robert

In my country Burma, the steel palisade fencing is not so popular because the price of this kind of fence product is higher than most of the fence products. But in Skyhall last year, I had an order of 20’ container of palisade fence with a very competitive price, and the quality is superior. From the moment I received the products, I decided to make a long-term business relationship with Skyhall.

– Benkanovo

I am Steve from United kingdom, my company sells various kind of metal fences in our country, the most popular fence in our country is steel palisade fencing. Last year, in order to find a new supplier, I placed an trail order for steel palisade fencing from Skyhall Fence, their high quality products and perfect service impressive me, so we want Skyhall Fence to be our new partner.

– Steve

We bought the palisade fence from Skyhall twice. The palisade is quite good and durable… People like it here very much. Skyhall is a good partner to work with.. The price is also quite competitive in our market… I’m very appreciate your job very much…. Their packing for palisade fence is quite impressive… Keep going… B/R

– Thomas

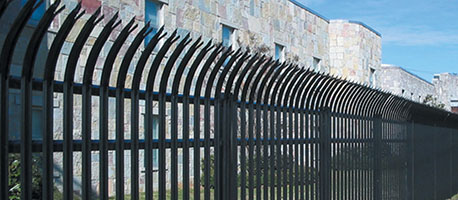

steel palisade fencing bend

High Security

With the strong pales to form its panel and concrete IPE post, the steel palisade fencing has a great security. People can not cut the pale easily with the pliers. And palisade fencing also uses the anti-theft bolts&nuts, so it is impossible to tear down the pale with the rail and the post.

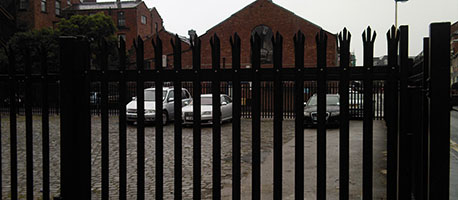

Pretty Appearance

The steel palisade fencing seems very nice in the looking. Many families will choose this type of fence to decorate their gardens or surround their houses. To guarantee the high security in the same time, it is also another scenery in your home.

powder coated palisade fencing
steel palisade fencing easy transportation

Easy Transportation

When transport the steel palisade fencing, it packed by every parts of the palisade fence. So it is very easy to transport and do not take too much space of the container. Compared with the wire mesh fencing, it can separate for different parts to loading and unloading. It is quite convenient for you to transport the steel palisade fencing.

High Prices

Don’t be panic with the title. To say the steel palisade fencing is high price, it is compared with the wire mesh fencing. The steel palisade fencing prices are a little higher. But to think about its strength and high security, it may worthy to pay for a good palisade fencing.

steel palisade fencing high security

The Installation Of The Steel Palisade Fencing

Steel Palisade Fencing is a little different from other fence products which have fence panels. Palisade fence are formed of mainly by many single iron pales. As for installation, we need tools such as rulers, saw or electric saw, electric drill, shovel, rubber glove and screwdriver.
1.Use the ruler to measure the length and width of the IPE post. Usually, the IPE post size is 100mm * 55mm. Make sure the length between the two centers of IPE post.
2.Then use the shovel to dig a square hole. The size of the hole should be about 103mm * 60mm * 500mm. And than make the same hole and a hole horizontally with the equal distance. The distance between the two post should be the same as the the length between the two centers of the digging holes.
3.Send the IPE posts into the hole, connect the horizontal rail to the IPE post by using of fish plates.
4.Next, use the electric drill to punch holes both on the horizontal rail and the pales. Remember to make the distance between the each pale the same. Then choose the bolts and nuts to make the pales and horizontal rails together. Both M12 Anti-theft bolts and nuts or M8 Anti- theft bolts and nuts can strengthen the whole security of the fence.
But there is also one thing you should remember in the installation. Because the pales of the Steel Palisade Fencing usually have a 3cm – 5cm high space between the ground. Just like the welded mesh fence which usually has a 3cm spike on the top of the fence panel.
Of course, there are other ways of installation like soldering which will solder the pales on the horizontal rail instead of using Anti-theft bolts. But considering the weight of the pales, using bolts and nut as the connection will be more convenient.


steel palisade fencing cad

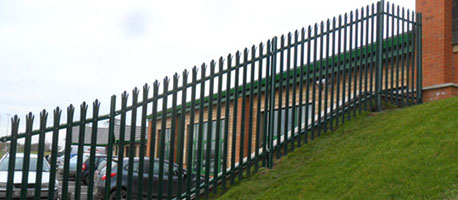

steel palisade fencing application scenarios

Applications of The Steel Palisade Fencing

Steel Palisade Fencing are very common to be seen in most factories and industries. Though the weight of the whole fence is very high, it has a wide range of uses because its beautiful designs. Palisade fence have three types of pales which are W-profile, D-profile and angle steel. These heavy pales cooperated with the post will surely form a sort of “cold” atmosphere. So the security of the fence is better than the fence panels which have a pretty light weight like euro fence. Besides, the installation of this fence is much simple than other panel fences.

Packing of the steel palisade fencing from skyhall fence

Steel palisade fencing from Skyhall is very popular all over the world. There are four elements lead to the popularity. The first one is our superior quality of the steel palisade fencing, it is the most important element. The second one is our careful and considerate service for our customer. The third one is our good terms of payment and our competitive price. Last but not at least, the packing of our palisade fence is also important element, the packing from Skyhall can make our steel palisade fencing looks more comfortable.

Now, let me have an introduction of our packing of the palisade fence.
We always use the plastic film wrapped outside the pales, IPE posts and horizontal rails (angle steels) separately, and then also loaded them on the strong steel pallet separately. And we always use the cartons as the package of the steel palisade fencing accessories including the metal fish plates, M8 bolts & nuts and M12 bolts & nuts. The packing can prevent our palisade fence from being rusted, damaged and damped. If our customer want the palisade fence gate, the gates can only be loaded in bulk without any packing.

However, some customer want to weld the whole palisade panel and we can provide the welded palisade fence. But we should tell you that the weld palisade fence panel is too heavy and easy to be damaged. It is not available to be loaded even in the biggest container. It is not in your favor. So we don’t recommend the weld steel palisade fencing.
