WELDED MESH FENCE
(SKYHALL 110 SERIES)
INTRODUCTION

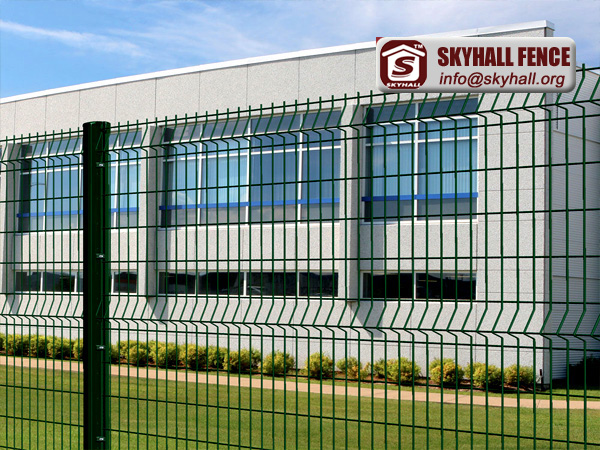

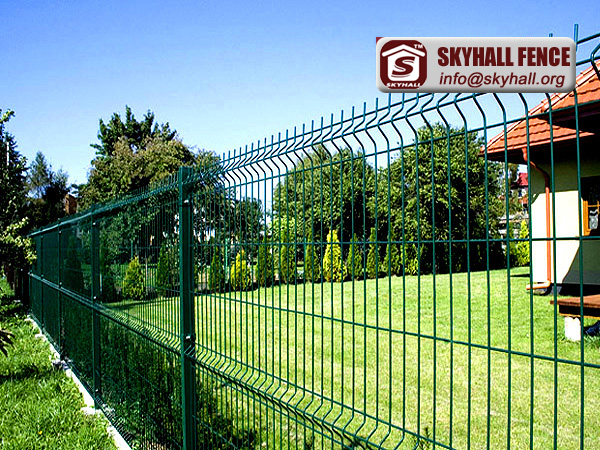

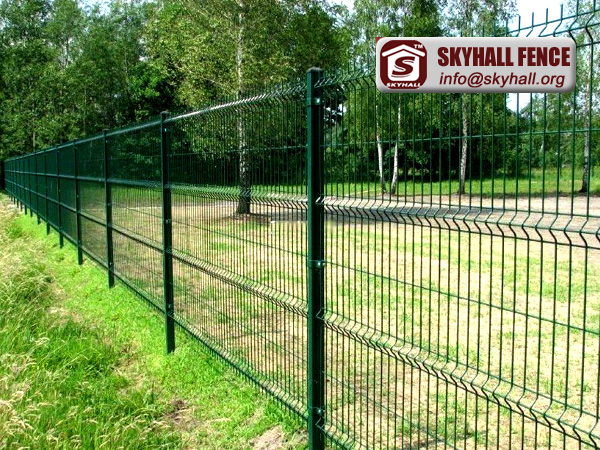

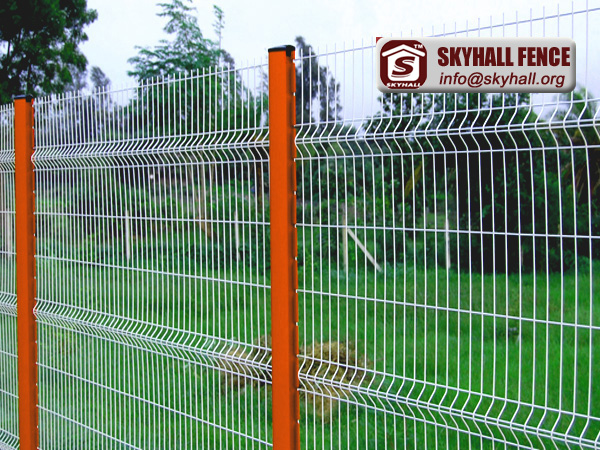

Welded Mesh Fence is an economical version of the fence system, constructed from a welded mesh fence panel with longitudinal profiles that forms a rigid fence. The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over gallvanized materials. Then connect the fence panel with post by suitable clips. Due to its simple structure, easy installation and beautiful appearance, more and more customers regard welded mesh fence as the preferred common protective fence.
FEATURES
- hot sale products
- see-through panels
- economic products
- high security products
- easy installation
- customer specs available
A HEIGHT: 1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm
B WIDTH: 2000mm / 2500mm
C WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm
D MESH SIZE: 200mm*50mm / 200mm*55mm

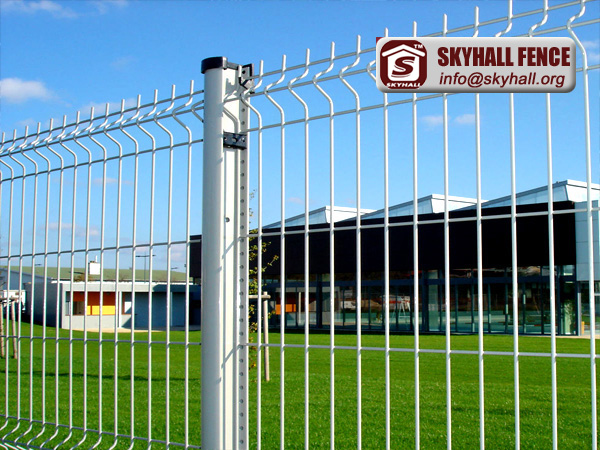

E POST: square post (60mm*60mm), peach post, swallow tail post(60mm)
F CLAMP: metal clamp / anti-UV plastic clamp / no clamp(for peach post)
G POST CAP: metal cap / anti-UV plastic cap
S SURFACE: Hot Dipped Galvanized (505g/m²) / Electric Galvanized + Polyester Powder Coated (All colors in Ral) / Electric Galvanized + PVC Coated
COLORS AVAILABLE

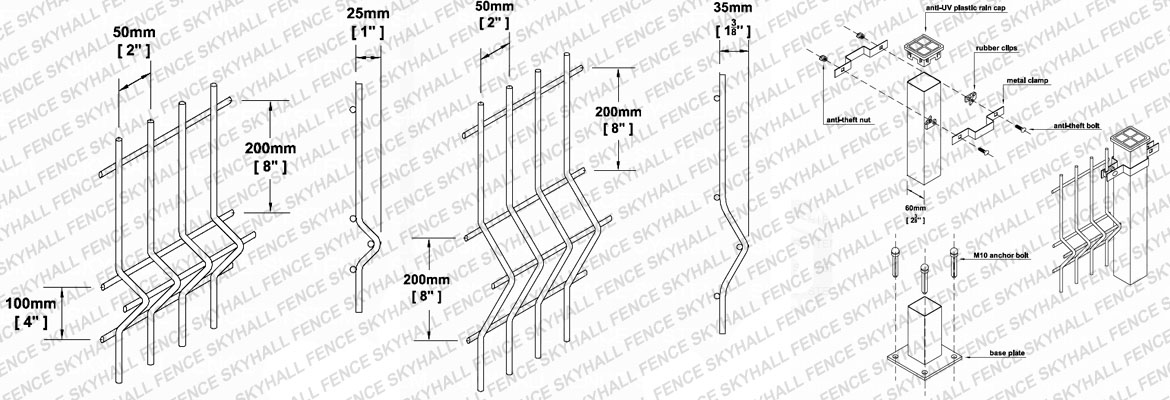

DRAWINGS
SKH110A0001SKH110A0002
