BARBED WIRE

(SKYHALL 310 SERIES)

INTRODUCTION

Barbed Wire, also called Barb Wire. As a effective and economical security barrier, using low carbon steel wire with sharp edges to deter the outer instrusions. One of its important features is the low cost of Skyhall Barbed Wire. It can be used to form the inexpensive fence with high security. Considering its high security and low cost, it is one of the hot-sale products among our clients.

barbed wire

FEATURES

hot sale products
see-through panels
economic products
high security products
easy installation
customer specs available

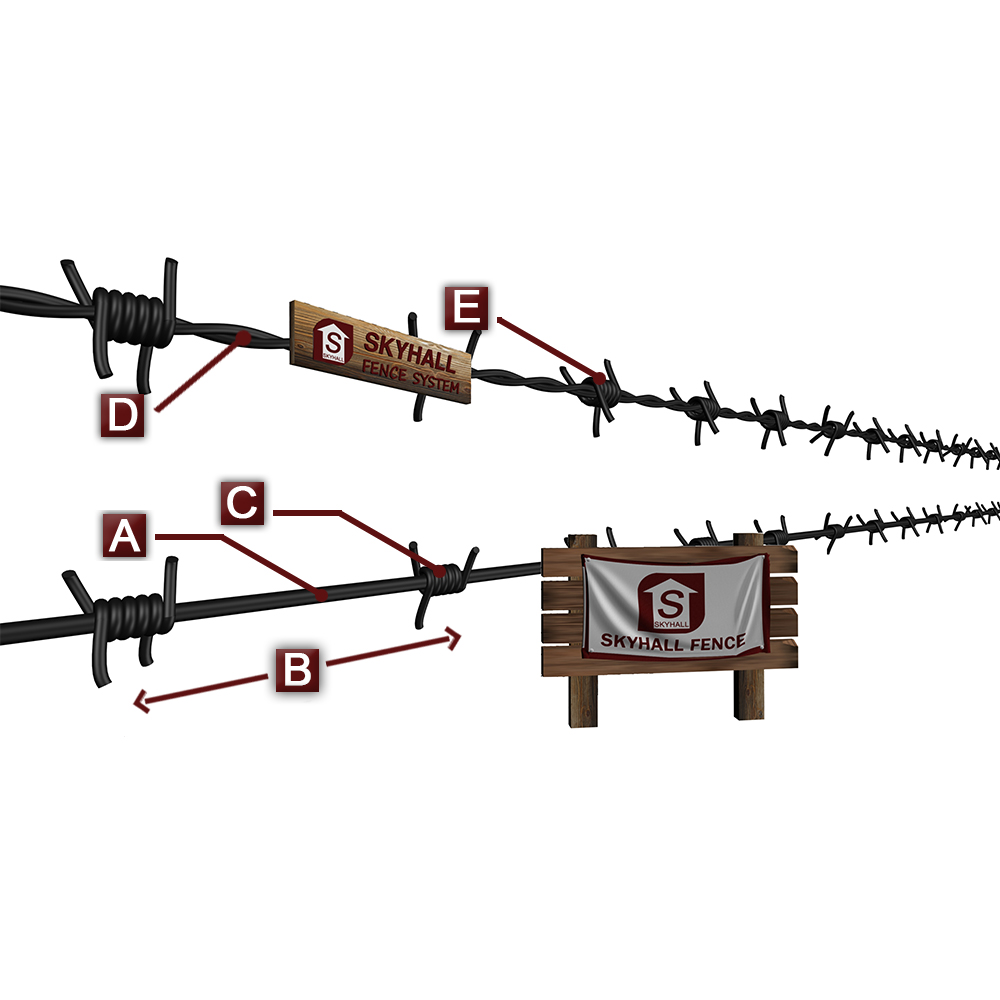

A Core Wire Thickness: #12 #12½ #13 #13½ #14 #14½ #15 #15½ (in B.W.G.)

B Barbs Spacing: 3” / 4” / 5” / 6”

C Barb Wire Thickness: #12 #12½ #13 #14 #14½ #15 #15½ (in B.W.G.)

D Type: Single Strand / Double Strand / Concertina Barbed Wire

E Weight: 25kg/coil

S SURFACE: Pre Hot Dipped Galvanized (100g/m²) / Electric Galvanized + Polyester Powder Coated (All colors in Ral)

Specifications of Barbed Wire
Gauge of Strand and Barb in B.W.G.	Approximate Length per kilogram in Meter
Gauge of Strand and Barb in B.W.G.	Barbs Spacing 3″	Barbs Spacing 4″	Barbs Spacing 5″	Barbs Spacing 6″
12×12	6.0617	6.7590	7.2700	7.6376
12×14	7.3335	7.9051	8.3015	8.5741
12-1/2×12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2×14	8.1096	8.814	9.2242	9.5620
13×13	7.9808	8.899	9.5721	10.0553
13×14	8.8448	9.6899	10.2923	10.7146
13-1/2×14	9.6079	10.6134	11.4705	11.8553
14×14	10.4569	11.6590	12.5423	13.1752
14-1/2×14-1/2	11.9875	13.3671	14.3781	15.1034
15×15	13.8927	15.4942	16.6666	17.5070
15-1/2×15-1/2	15.3491	17.1144	18.4060	19.3386

Gauge No.	B.W.G Conversion Chart
Gauge No.	inch	mm
6	0.203	5.156
7	0.180	4.572
8	0.165	4.191
9	0.148	3.759
10	0.134	3.404
11	0.120	3.048
12	0.109	2.769
13	0.095	2.413
14	0.083	2.108
15	0.072	1.829
16	0.065	1.651
17	0.058	1.473
18	0.049	1.245
19	0.042	1.067
20	0.035	0.889
