PALISADE FENCE
(SKYHALL 520 SERIES)
INTRODUCTION
Palisade Fence is widely used in the industry. As a commercial fence, using hot formed and cold rolled steel belts to form a secure panel. Palisade Fence can prevent us from most of the intrusions. There are also three types of tops, including “W” profile, “D” profile and angle iron. Skyhall Palisade Fence can also prevent crime for the private residents.
FEATURES
- hot sale products
- see-through panels
- economic products
- high security products
- easy installation
- customer specs available

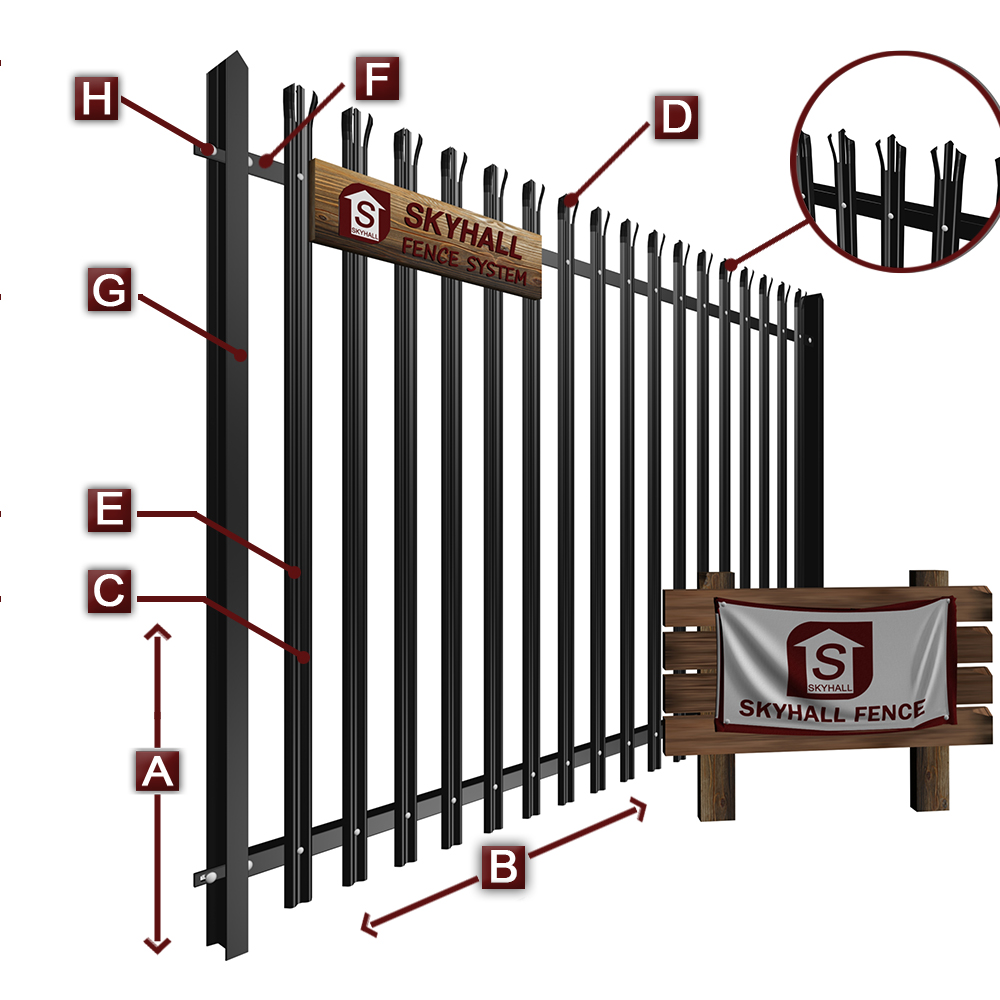

A HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm / 2400mm
B WIDTH: 2750mm / 3050mm
C PALE TYPE: W-profile / D-profile / Angle Steel
D PALE TOP: Single Pointed / Triple Pointed / Round Top / Square Top
E PALE THICKNESS: 1.5mm / 2.0mm / 2.5mm / 3.0mm
F HORIZONTAL RAIL: Angle Steel 40mm*40mm*4.0mm / 45mm*45mm*4.5mm / 50mm*50mm*5.0mm
G POST: 100mm*55mm / 102mm*44mm (IPE post)
H CLAMP: Fish Plate
S SURFACE: Hot Dipped Galvanized (505g/m²) / Electric Galvanized + Polyester Powder Coated (All colors in Ral)
COLORS AVAILABLE
DRAWINGS
SKH520A0001SKH520A0002
