Gabion Basket

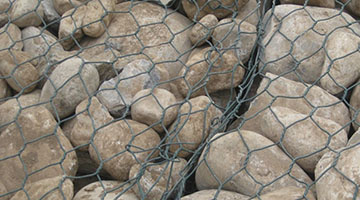

Recent years, we can always see the gabion basket. It is very common in the river, road side, bridge side, mountain slope, etc. The gabion basket from Skyhall Fence has other names like gabion box, gabion wall, gabion cage, stone cage,etc. Gabion basket is manufactured from 8×10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the Gabion is heavily Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm). The Gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter. Gabions shall be manufactured and shipped with all components mechanically connected at the production facility.

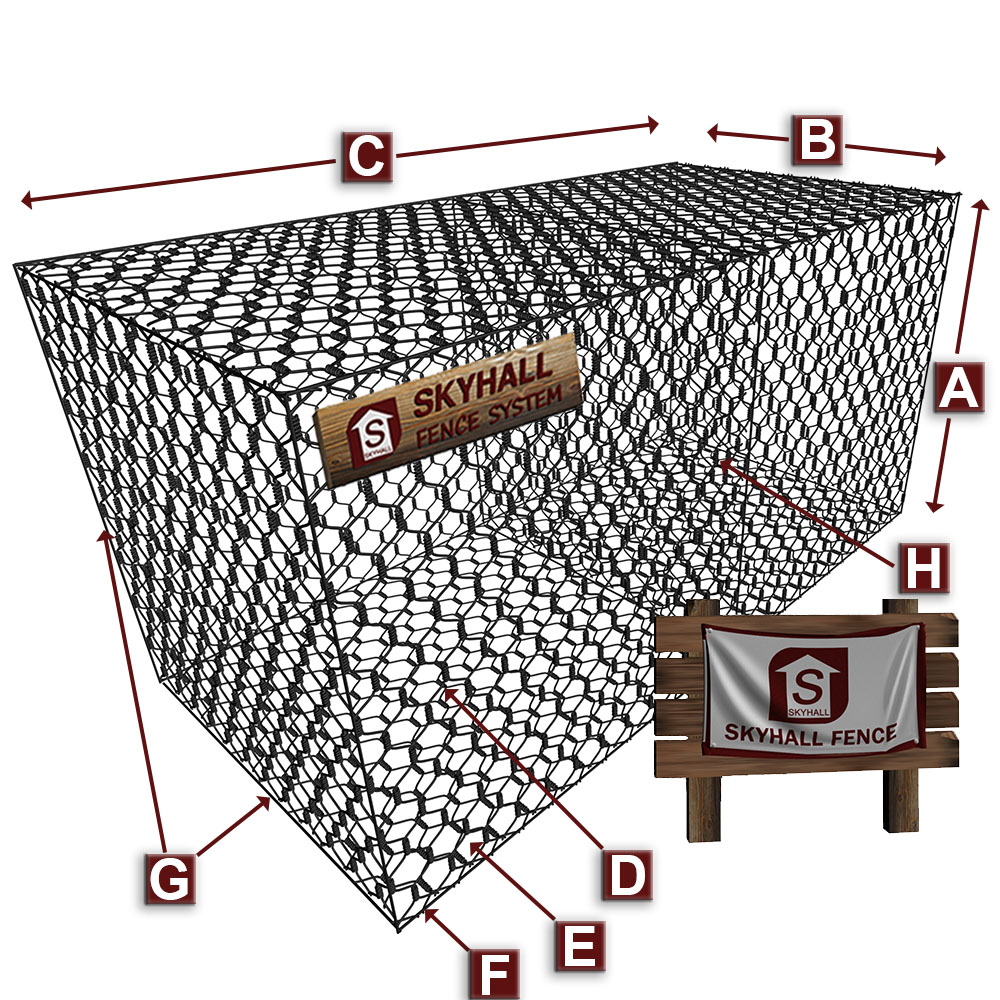

Gabion Basket Specification
A HEIGHT: 500mm / 800mm / 1000mm / 1200mm / 1500mm
B WIDTH: 500mm / 1000mm / 1500mm / 2000mm
C LENGTH: 1000mm / 2000mm / 3000mm
D WIRE THICKNESS: 2.2mm / 2.4mm / 2.7mm
E MESH SIZE: 60mm*80mm / 80mm*100mm / 100mm*120mm
F LACING WIRE THICKNESS: Anti-UV Plastic Clamp / Metal Clamp
GSELVEDGE WIRE THICKNESS: 3.0mm
HDIAPHRAGM
S SURFACE TREATMENT: Pre Hot Dipped Galvanized (100g/m²)
Pre Hot Dipped Galvanized (200g/m²)
Galfan Wire (Zinc & Aluminium Alloy)
Electric Galvanized + PVC Coated (All colors in Ral)
Electric Galvanized + PE Coated (All colors in Ral)
NOTES:
- Height: the height of the gabion basket.
- Width: the width of the gabion basket.
- Length: length of gabion basket.
- Wire Thickness: the diameter of gabion mesh.
- Lacing Wire: low carbon steel wire to tie the separated gabion mesh to be basket.
- Selvedge Wire: the diameter of the wire on the edge of gabion basket.
- Diaphragm: a single piece of gabion mesh to separate the basket to several cells.
- Pre – Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the gabion basket.
- Galfan Wire: low carbon steel wire coated by zinc – aluminium alloy.
- Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) + PVC coated low carbon steel wire before production.
- Electric Galvanized + PE Coated: electric galvanized (zinc coating 8~12g) + PE coated low carbon steel wire before gabion basket production process.
Features

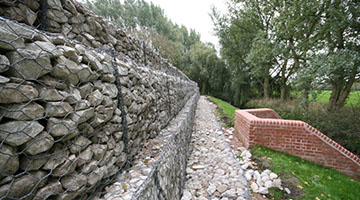

Woven Type
Different with other wire mesh fences, the gabion basket is not welded by the wires but woven together. Using this type of method forming the gabion mesh box, it can cut down the cost of the gabion box prices. And its appearance also looks very nice because of woven type. To choose it for your use, it will be a great choice.
Simple installation
Just fill the stone into the Gabions and seal it. No special technology needed.Weather proof under natural destroy, corrosion resistant. No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing
Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic. Less transport freight. It can be folded together for transport and further installation.
Randomly Selected Projects
2014 – 11,000pcs – India
Supplied 11,000 set gabion basket to India with galfan wire material.
2011 – 5,100pcs – Uganda
Exported 5,100pcs gabion basket to Uganda with PVC coated galvanized wire material, size 1m * 1m * 2m.
2011 – 51,440m2 – Angola
Exported 51,440 square meter gabion basket to Angola, with galfan wire material.
2013 – 104,000m2 – South Africa
Exported 104,000 square meter gabion basket to South Africa.
2010 – 13,000pcs – India
Exported 13,000pcs of pre – hot dipped galvanized higher zinc layer (min 200g/m2) gabion boxes to India.
We started business with Skyhall Fence when we got a project that requires a lot of gabion basket. The staff in Skyhall Fence was very professional throughout our working together. We got a great Cooperation and I sincerely recommend them to you guys. You definitely won’t regret this.
– Paul
Product quality and good service are two most important things when we do business with Chinese suppliers. And Skyhall Fence didn’t fail us. They display great patience and professionalism when we sourcing for gabion basket. It was a new product, these men in Skyhall Fence really helped me a lot. Great job!
– Nate
It goes without saying that a good supplier goes a long way. We have worked with a lot suppliers in China but there hasn’t been a long term relationship. After this time we worked with Skyhall Fence, I really think we can do business for many years. I’m satisfied with their service.
– Shane
We had a county project of gabion basket. The quantity needed was quite big. So the quality must be good. We request samples from a few suppliers in China and finally we picked Skyhall Fence as our supplier. And it turned out to be a great choice. They offered us with good product, good service and fast delivery. Keep going, guys. Hope we can do business again.
– Jason
Good cooperation with supplier requires a lot factors. Fortunately these people in Skyhall Fence has many of them. We came to China and they showed us to their factory and we checked their gabion basket product as well as other products. We had a great start and hope this relationship could last long.
– Abu
Economic
For the simple structure and woven type, the cost of the gabion box is lower than the other fencing products. And the gabion box is usually applied in the big prairie, so it will need a big quantity, with the low cost, to choose the gabion basket can control your budget very well.

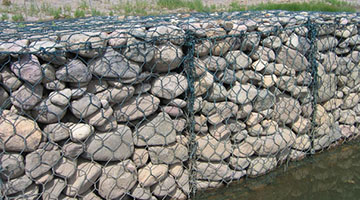

Simple installation
The installation of the gabion basket is very simple. You just need to put the gabion box on the site and then just fill the stones into the Gabions and seal it.
Long Lifetime
The gabion basket has used the high zinc coating galvanized wire to woven together, it has good anti-corrosion factor. Even in the bad weather or bad natural conditions, the gabion box can have a long more than dozens of years lifetime. No special technology needed.Weather proof under natural destroy, corrosion resistant. No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing
Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic. Less transport freight. It can be folded together for transport and further installation.
The installation of gabion basket from Skyhall Fence
There is no need to dig a foundation, all the gabion basket need is a firm base that they will not sink into. Make sure the ground is compact which can be done by compacting hardcore into the leveled ground if necessary. The fill should be of a gradient of 100-200mm as the aperture of the mesh is 75mm, you don’t want rocks coming through the mesh or to leave voids in the gabion basket. Using the lacing wire supplied lace the corners of the baskets tying the ends off with a pair of pliers. There is no need to lace the sides already clipped. Next lace the formed gabion basket together as shown with the blue lines on the diagram. There is an easier way if time is of the essence. You can purchase helicoils, which are long springs that you wind down the corners of the baskets. These springs attach the front and side panel of a gabion basket and its adjacent panel in one go. You only need 2 springs per basket and 2 extra for the end of a run (in the case of 1m cubes). You don’t need lacing wire for the sides when you use this method. The springs are more obvious than the lacing wire. When filling the baskets it is necessary to insert a brace in the middle of the basket. This is important to stop the face bulging when filling. The higher the wall the more important this is as the more force exerted on the face. 1/3rd fill the basket and then create a windless which are the red ties in the diagram to the left. Make a loop from the back to the front of the gabion basket and join the ends with pliers. Put a sturdy flat stone in this loop and turn in circle creating a tourniquet effect which pulls the front tight. Fill on top of this which will hold the stone in place. Repeat 2/3rds of the way up. Finally lace the lids down with the lacing wire provided. Remember to attach all higher rows to the lower ones as well.

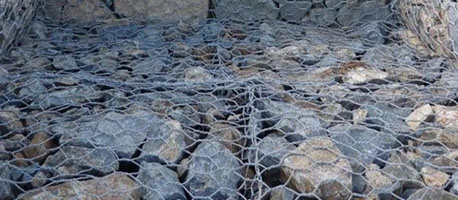

Application Scenarios

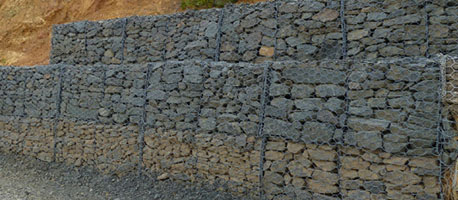

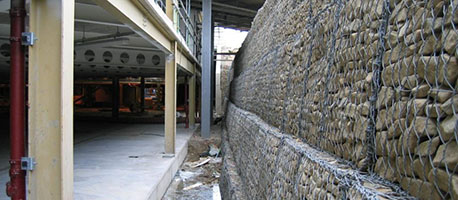

Gabion basket has many applications like gabion retaining walls, gardening landscape,soil and water conservation, road protection, river training and bridge protection,etc,. Gabion basket Retaining walls are built in order to hold back soil which would otherwise move downwards. The purpose is to stabilize slopes and provide useful areas at different elevations, such as terraces for agriculture, buildings, roads and railways. Gabion Retaining walls are built in order to hold back soil which would otherwise move downwards. The woven gabion basket and welded gabion box play the same role in gardening landscape, however welded mesh gabions box are made from heavier mesh with smaller openings. Therefore welded mesh gabions are better to shape, faster to install, quicker to fGabion basket and gabion mattress in the river training applications, continue to help the river to maintain the original ecological environment. What’s more, it’s beneficial to the river long-term stability. They are economical and environmentally friendly products.ill, and more beautiful to look at. Gabion basket and gabion mattress in the river training applications, continue to help the river to maintain the original ecological environment. What’s more, it’s beneficial to the river long-term stability. They are economical and environmentally friendly products.
Packing of gabion basket from Skyhall Fence
Option one: loading into the container in bulk without any packing.
This kind of packing method is very good. If our customer want the price of the gabion basket be much lower, loading into the container in bulk without any packing can reduce the cost of the gabion basket. So, the price can be much lower.
Option two: plastic film wrapped and then loaded on the strong steel pallet.
You can chose the second kind of packing, although the price of this kind of packing is a little higher than the first one, it has itself advantages, such as, the plastic film wrapped outside of the gabion basket can prevent it from being rusted and damped. The strong steel pallet can protect the gabion box from being damaged. It can also make the loading very easy by the forklift and make the gabion box looks very neat.
If our customer has their idea about the packing, we can also help our customer design the packing to fulfill our customers’ requirement.
Go your FREE QUOTE right now right here!
1.Want to know more about gabion basket?
Gabion basket is quite an important wire mesh product which is widely used in a lot of areas. I believe you already have some good ideas about the gabion basket product after you read everything on this page. Anyway, if the information on this particular page isn’t enough for you, go ahead and fill out that form on the right column and let us know.
2.Go get your FREE QUOTE without any obligations.
Nowadays efficiency becomes more and more important to people’s life. Don’t wait up, if you need a quote from our fencing experts, go right ahead and fill out that form on the right form and let our professionals give you a detailed and accurate quotes real quick.
3.Want to cooperate with us, now is the right time to let us know.
If you have a business established in your countries or areas, and need a responsible supper of gabion basket, now is the time to let us know. Fill out that form on the right column and tell us about your business ideas. We’ll help you out, that’s a promise. Go contact us!
