AIRPORT FENCE
(SKYHALL 910 SERIES)
INTRODUCTION
Airport Fencing, just as its name implies, which is widely used in the airport. As a protective fence, using 4.0mm/5.0mm low carbon steel wire to form the main panel. The surface treatment of Skyhall Airport Fence is coated by galvanization + polyester powder or galvanization + PVC coating. 600mm V shaped square pipe will be used in the connection of the meshes in 2.5m intervals. Airport Fence with Concertina Razor Wire on the top will increase its security.
FEATURES
- hot sale products
- see-through panels
- economic products
- high security products
- easy installation
- customer specs available

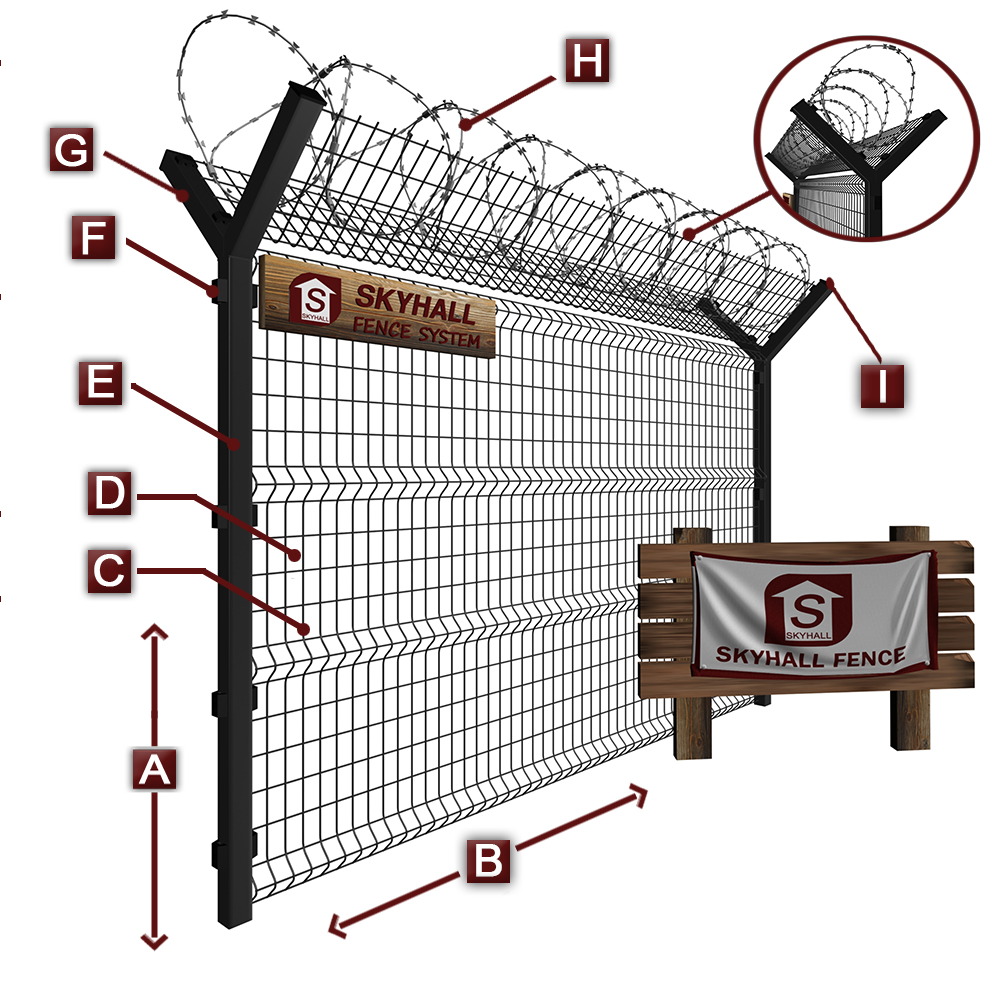

A HEIGHT: 2400mm / 2700mm / 3000mm
B WIDTH: 2500mm
C WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm
D MESH SIZE: 100mm*50mm / 150mm*50mm / 200mm*50mm
E POST: Square Post (60mm*60mm)
F CLAMP: Anti-UV Plastic Clamp / Metal Clamp
GV-ARM: 500mm*500mm
H RAZOR WIRE: Dia 500mm BTO-22
I POST CAP: Metal Cap / Anti-UV Plastic Cap
S SURFACE: Hot Dipped Galvanized (505g/m²) / Electric Galvanized + Polyester Powder Coated (All colors in Ral)
COLORS AVAILABLE

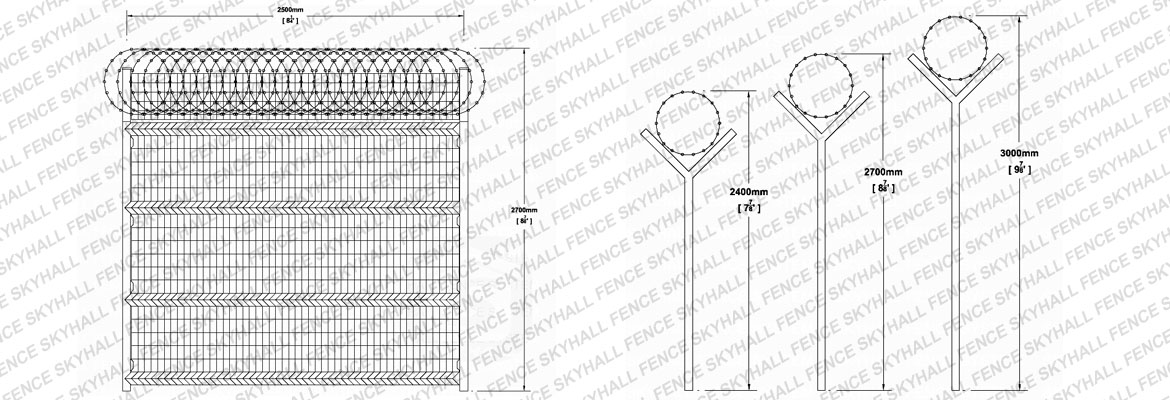

DRAWINGS
SKH910A0001Click the button to download adobe PDF reader.
