CONCERTINA RAZOR WIRE
(SKYHALL 320 SERIES)
INTRODUCTION
Concertina Razor Wire, also called Razor Wire. As an effective and economical security barrier, using galvanized steel blade to wrap around a galvanized core wire. With its high security function, Skyhall Concertina Razor Wire can prevent most of the instrusions for it is hard and dangerous to broke. With the Concertina Razor Wire on the top of other fences, it can greatly improve the safety factor. One of the important features is the low cost. It is popular in the African market, it is also a hot-sale product most countries and areas.
FEATURES
- hot sale products
- see-through panels
- economic products
- high security products
- easy installation
- customer specs available

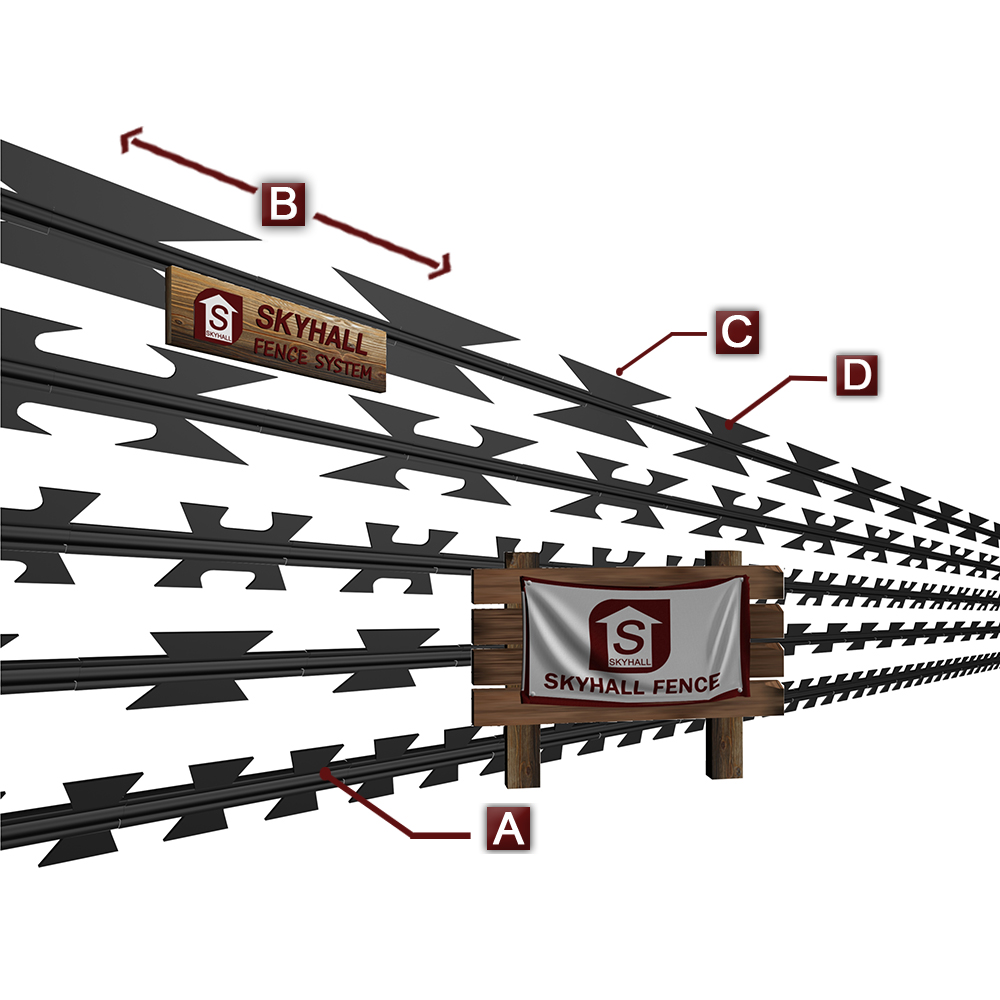

A Outside Diameter: 450mm / 500mm / 550mm / 600mm / 650mm / 700mm /750mm / 800mm / 900mm / 950mm / 1000mm
B Length: 8m ~ 15m
C Blade Thickness : 0.32mm ~ 0.6mm
D Blade Type: BTO-10 / BTO-12 / BTO-22 / CBT-25 / BTO-30 / CBT-60 / CBT-65
S SURFACE: Pre Hot Dipped Galvanized (100g/m²) / Electric Galvanized + Polyester Powder Coated (All colors in Ral)
|
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Blade |
Blade |
Blade |
|
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-15 |
|
0.5±0.05 |
2.5±0.1 |
15±1 |
15±1 |
33±1 |
|
BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-30 |
|
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
45±1 |
|
CBT-25 |
 |
0.5±0.05 |
2.5±0.1 |
25±1 |
16±1 |
40±1 |
|
CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) | ||||||
| Concertina Razor Wire (Standard Use) | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
COLORS AVAILABLE
DRAWINGS
SKH320A0001Click the button to download adobe PDF reader.
